Easy-Laser XT550 Laser Alignment Tool

Professional Shaft Alignment System for Industrial Machinery

The Easy-Laser XT550 Laser Alignment Tool is a high-precision shaft alignment solution developed for industrial maintenance professionals who require fast, accurate, and reliable machine alignment. Designed with advanced laser measurement technology, wireless communication, and intuitive alignment software, the XT550 helps industries reduce machine vibration, minimize bearing wear, improve energy efficiency, and extend rotating equipment lifespan.

Built for demanding industrial environments, the XT550 is widely used in manufacturing plants, power generation facilities, mining operations, marine industries, oil & gas facilities, and maintenance service companies where precision alignment is essential for operational reliability.

Why Choose the Easy-Laser XT550?

Proper shaft alignment is one of the most important factors in maintaining machine reliability and reducing unexpected downtime. The XT550 simplifies the alignment process while delivering highly accurate measurements even in difficult operating environments.

Main Advantages

Advanced Laser Measurement Technology

The XT550 utilizes precision laser transmitters and digital detectors for accurate shaft alignment calculations.

Wireless Communication

Integrated Bluetooth wireless connectivity allows cable-free operation between measuring units and display devices.

Rugged Industrial Design

The system is engineered with durable IP-rated components resistant to dust, moisture, and industrial contamination.

User-Friendly Alignment Software

The graphical alignment interface provides step-by-step guidance for faster machine correction.

Fast Setup and Operation

Quick mounting brackets and intelligent measurement modes help technicians complete alignments efficiently.

Features;

• Certified for Zone 1 Div 1 Hazardous areas – II 2 G, Ex IB op is IIC T4 Gb
• Dual Beam, dual dot laser system for longer spans and complex measurements
• The Easy-Laser XT550 allows for Machine Trains with 3 machines/2 couplings ​
• Measure Base twist
• Multi-Point, Continuous & Uncoupled Sweep measurement methods
• Measurement Range up to 20m
• Shaft Diameters up to 250mm and with extension chains up to 450mm.

In the box;

• 1 x Measuring unit XT50-M
• 1 x Measuring unit XT50-S
• 2 x Shaft brackets with chains and rods
• 4 x Rods 75 mm
• 2 x Rods 120 mm
• 2 x Extension chains 900 mm long
• 1 x Measuring tape 3 m
• 1 x Rod Tool 1 x Charger (100–240 V AC)
• 1 x DC split cable for charging
• 1 x Quick reference manual
• 1 x Cleaning cloth for optics
• 1 x USB memory with manuals

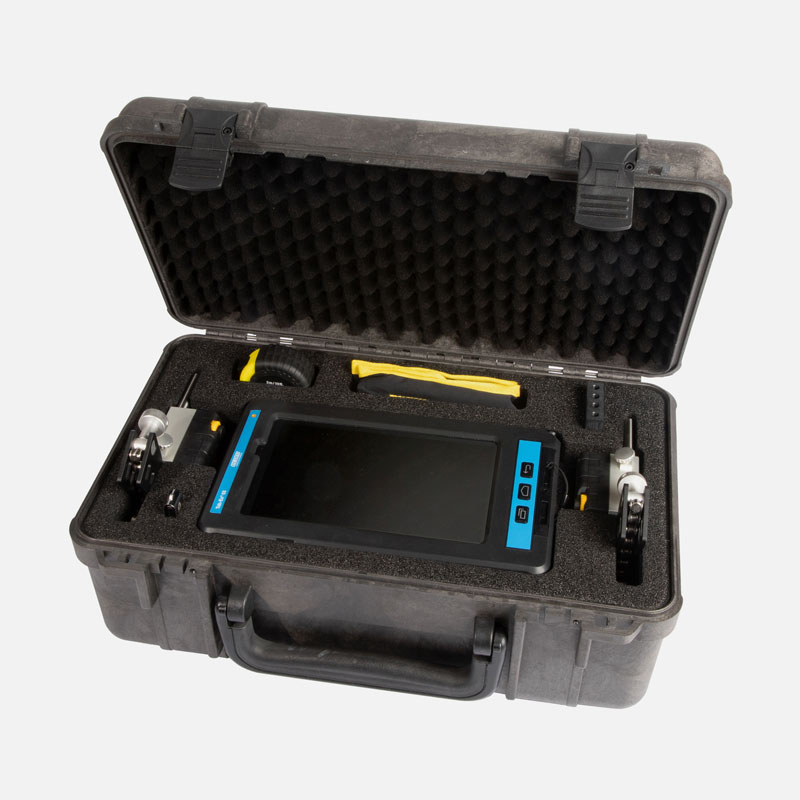

• 1 x Carrying case Ex/ATEX Optional
• 1 x Display Unit ecom Tab-Ex
