Easy-Laser XT950 Geometric Alignment System

Description

Easy-Laser XT950 Geometric Alignment System

Advanced Geometric Measurement and Machine Alignment Solution

The Easy-Laser XT950 Geometric Alignment System is a high-precision laser measurement platform engineered for advanced geometric alignment, machine calibration, and industrial positioning applications. Designed for demanding industrial environments, the XT950 combines laser-based measurement technology, wireless communication, intelligent software, and rugged hardware to help maintenance professionals achieve exceptional alignment accuracy across large machinery systems.

The XT950 is widely used in manufacturing plants, paper mills, steel industries, marine facilities, energy sectors, and precision engineering environments where geometric accuracy is critical for operational performance and equipment reliability.

Why Choose the Easy-Laser XT950?

Industrial machinery requires precise geometric alignment to maintain production quality, reduce mechanical wear, and optimize machine efficiency. The XT950 provides versatile measurement capabilities for complex alignment tasks while simplifying setup and reporting procedures.

Main Advantages

Advanced Laser Measurement Technology

The XT950 uses precision laser transmitters and digital detectors for accurate geometric measurements across long distances.

Multi-Application Capability

Supports a wide range of alignment tasks including:

• Straightness measurement
• Flatness measurement
• Squareness verification
• Parallelism alignment
• Roll alignment
• Bore center alignment

Wireless Operation

Bluetooth communication enables cable-free operation for improved mobility and convenience.

Rugged Industrial Construction

Designed with IP-rated components for operation in harsh industrial conditions.

Intelligent Software Platform

The graphical user interface simplifies measurement, analysis, and reporting processes.

What is the Easy-Laser XT950 Used For?

The XT950 is designed for advanced industrial geometric measurement and machine alignment.

Common Applications

Roll Alignment

Used extensively in:

• Paper mills
• Printing machinery
• Converting lines
• Steel processing systems

Flatness Measurement

Measures surface flatness for machine foundations and industrial structures.

Straightness Measurement

Verifies straightness of rails, machine beds, and guide systems.

Bore Alignment

Aligns bearing bores and cylindrical machine structures.

Machine Geometry Verification

Checks parallelism, squareness, and angular deviations in industrial machinery.

Features;

• It automatically calculates the bearing journals in relation to each other, both horizontally and vertically.
• Evaluate the results on-site with different calculation methods such as “Best fit around zero” and “Waviness”.
• Analyse the different choices of reference points and set the offset and tolerance values.
• Measure and align both full and half bearing journals with equal simplicity.
• All parts are designed for maximum accuracy and stability – resolution of 0.001 mm and a measurement distance up to 40m
• Graphic results in PDF format from the system. Sign reports electronically. Add pictures

Precision Laser Transmitter System

The XT950 uses high-stability laser emitters for long-distance industrial measurement applications.

Digital Detector Technology

Sensitive digital detectors provide high-resolution measurement accuracy.

Multiple Geometric Measurement Programs

The software includes dedicated applications for:

• Flatness
• Straightness
• Roll alignment
• Bore alignment
• Parallelism
• Squareness

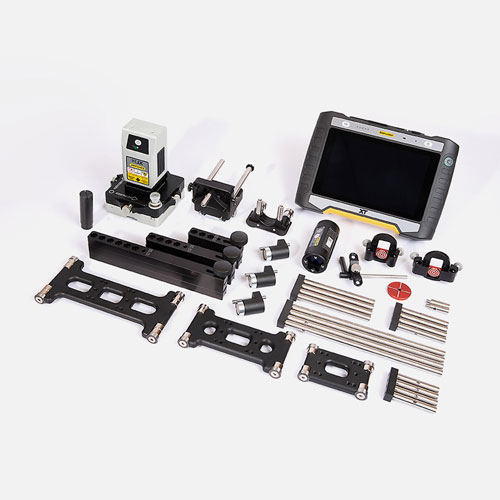

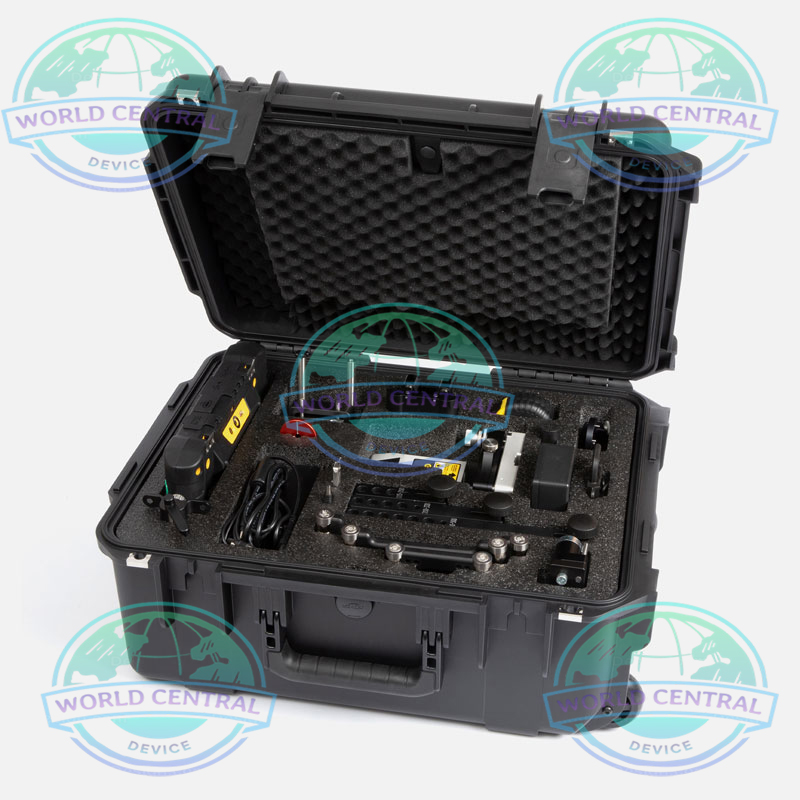

In the box;

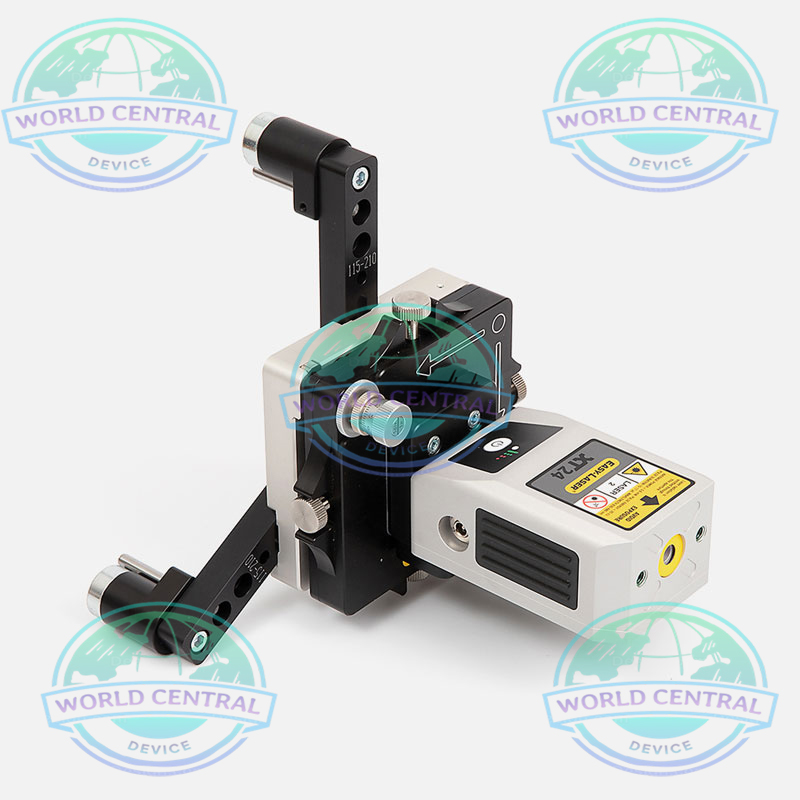

• 1 x Laser transmitter XT24

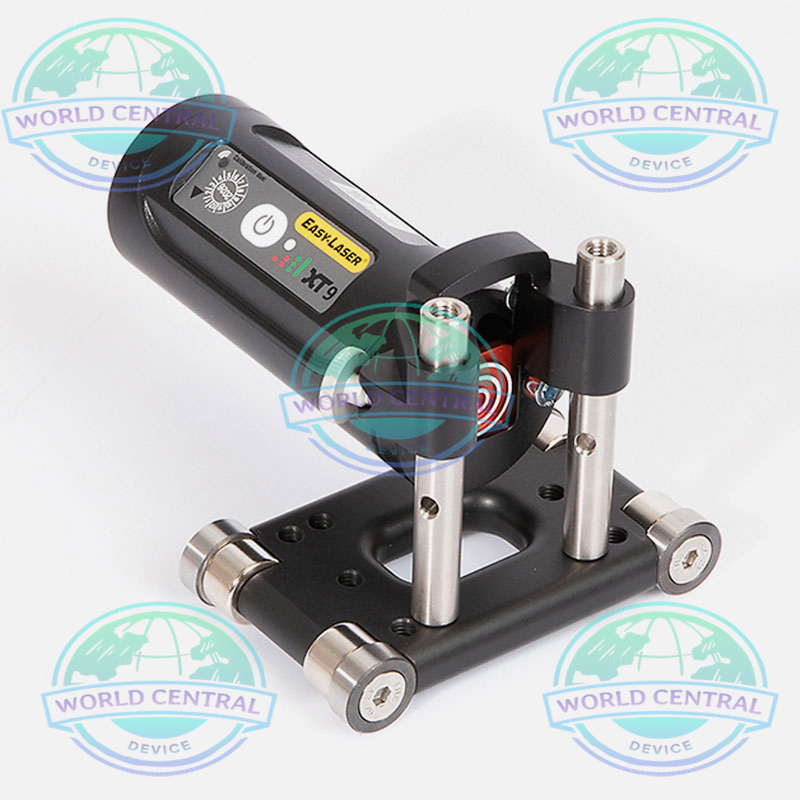

• 1 x Detector E9
• 1 x Offset hub for XT24
• 1 x arm kit with magnets
• 1 x Slide bracket Small
• 1 x Slide bracket Medium
• 1 x Slide bracket Large
• 1 x Rods – 4 x 75mm
• 1 x Rods – 4 x 120mm
• 1 x Rods – 4 x 240mm
• 1 x Bracket with rotatable bore probe
• 1 x target for detector rough alignment
• 1 x axial support for slide brackets
• 1 x Rod adapter with built-in target C-C 56mm
• 1 x Rod adapter with built-in target C-C 40mm
• 1 x Slide bracket, 25mm width
• 1 x Measuring tape 5 m
• 1 x USB memory stick with documentation
• 1 x DC split cable for charging
• 1 x DC to USB adapter for charging
• 1 x Battery charger 240 VAC
• 1 x Cleaning cloth for optics
• 1 x Carrying case
