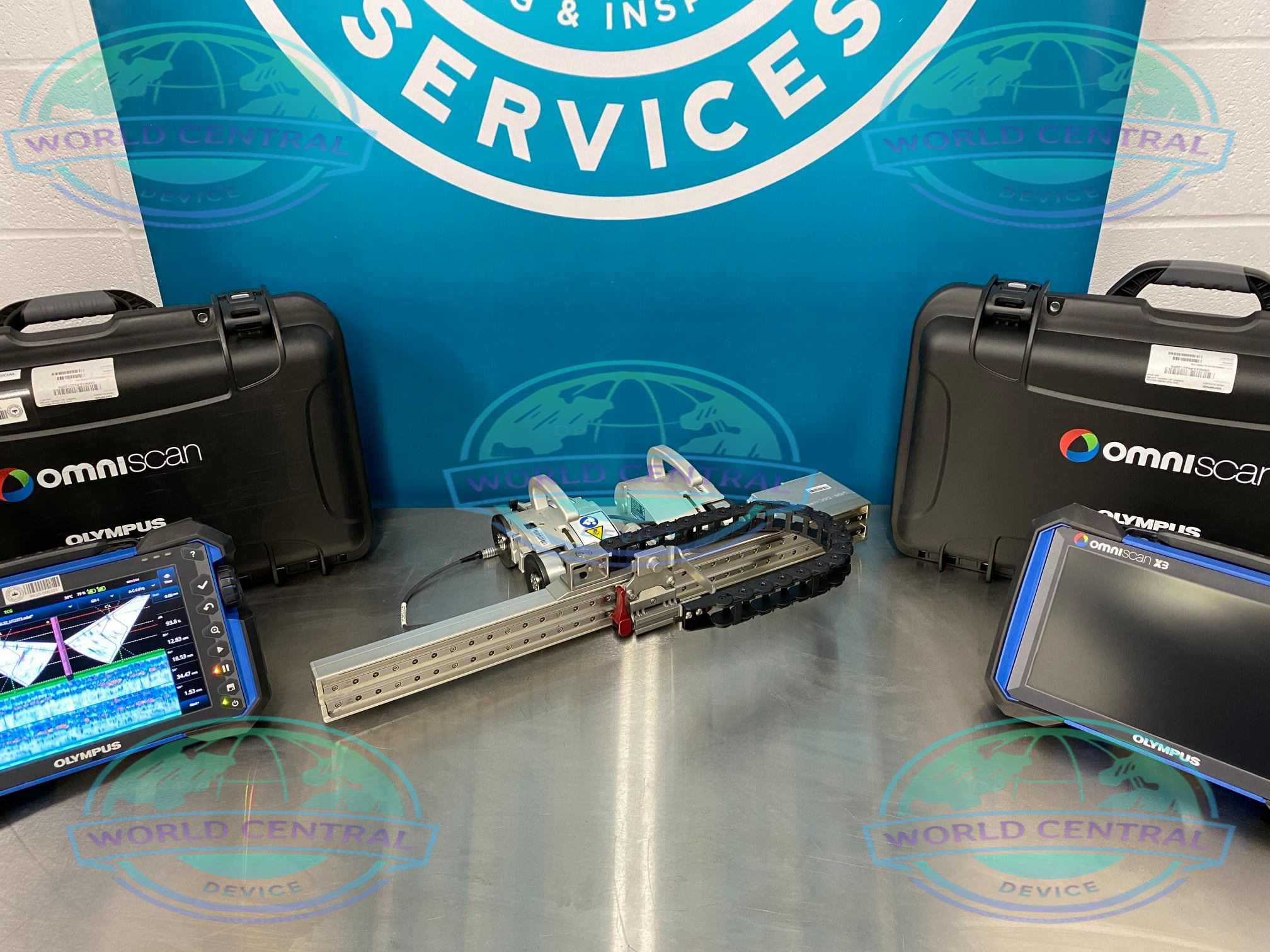

Olympus OmniScan X3 64 Portable Phased Array Ultrasonic Flaw Detector

Description

Olympus OmniScan X3 64 Portable Phased Array Ultrasonic Flaw Detector

Advanced Portable PAUT and TFM Inspection System for High-Performance Non-Destructive Testing

The Olympus OmniScan X3 64 Portable Phased Array Ultrasonic Flaw Detector is a next-generation phased array ultrasonic testing (PAUT) instrument engineered for advanced non-destructive testing (NDT) applications. Built for demanding industrial inspections, the OmniScan X3 64 combines powerful Total Focusing Method (TFM) technology, Full Matrix Capture (FMC), phased array ultrasonic testing, and conventional ultrasonic testing in a rugged portable platform.

Designed for inspectors who require speed, precision, and reliability, the OmniScan X3 64 delivers exceptional imaging performance for weld inspection, corrosion mapping, aerospace component analysis, pipeline inspection, and critical asset integrity evaluation.

With improved processing power, enhanced workflow automation, and superior imaging capabilities, the OmniScan X3 64 is widely used across the oil & gas, aerospace, power generation, manufacturing, petrochemical, marine, and heavy industrial sectors.

Main Applications

Weld Inspection

Ideal for advanced weld inspections involving:

• Pipeline welds
• Pressure vessels
• Structural welds
• Offshore components
• Nuclear weld inspections

Corrosion Mapping

Suitable for:

• Corrosion monitoring
• Remaining wall thickness analysis
• Storage tank inspection
• Pipeline corrosion evaluation

Aerospace Inspection

Used for inspecting:

• Composite aircraft structures
• Turbine components
• Bond integrity
• Aerospace welds
• Critical flight components

Oil & Gas Industry

Supports inspection of:

• Pipelines
• Refinery infrastructure
• Offshore platforms
• Pressure systems
• Petrochemical equipment

Manufacturing and Heavy Industry

Applied for:

• Forging inspection
• Casting evaluation
• Structural steel analysis
• Quality assurance testing

Key Features

64-Channel Phased Array Architecture

The OmniScan X3 64 delivers advanced phased array performance using powerful 64-channel ultrasonic technology.

Benefits Include

• High-speed scanning
• Improved defect characterization
• Better inspection coverage
• Enhanced imaging resolution

High-Resolution Touchscreen Display

The OmniScan X3 64 features a large responsive touchscreen designed for field operation.

Display Features

• High-brightness display
• Multi-touch functionality
• Excellent outdoor readability
• Intuitive navigation

Advanced Connectivity

Supports multiple connectivity options for data transfer and reporting.

Connectivity Options

• USB
• Wi-Fi
• Ethernet
• External storage support

Rugged Industrial Construction

Built for demanding industrial inspections in harsh operating conditions.

Rugged Design Features

• Impact-resistant housing
• Environmental sealing
• Portable field-ready construction
• Industrial durability

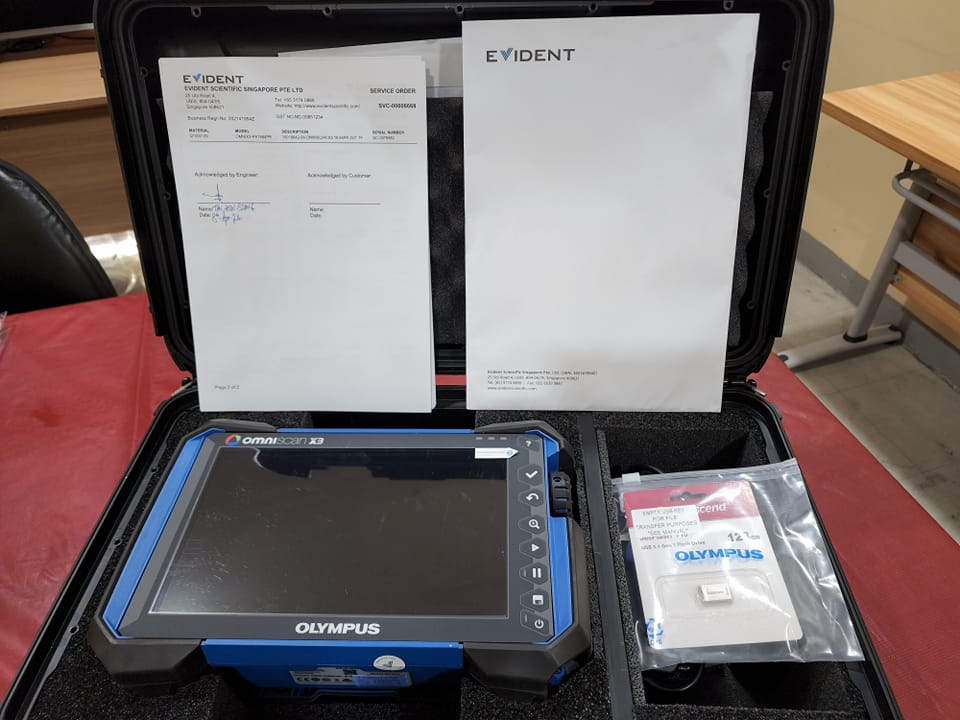

Package includes;

• Olympus Omniscan 32:128 PR
• Battery and Charger with Power Cord
• XAAB-0293 Connect Cable
• Olympus SL16 A10 Transducer
• SA10 55 Degree Wedge
• GE Gamma 5mhz .50 x.50 Dual Element Transducer
• Screen Protector
• Travel Case

Specifications
