Easy-Laser XT770 GEO Shaft Alignment System
The Easy-Laser XT770 GEO is an advanced industrial laser shaft alignment and geometric measurement system designed for rotating machinery maintenance, precision installation, and predictive reliability applications.
Delivery and return
Delivery and return
Shipping Information
Shipping Information
Composition and care
Composition and care
Description
Easy-Laser XT770 GEO Shaft Alignment System
Advanced Laser Shaft Alignment and Geometric Measurement Solution for Industrial Machinery
The Easy-Laser XT770 Shaft+GEO is a high-precision laser alignment platform engineered for rotating machinery installation, maintenance, and condition monitoring. Designed for demanding industrial environments, the XT770 GEO combines advanced shaft alignment capabilities with geometric measurement functions such as flatness, straightness, squareness, and parallelism.
Developed by Easy-Laser, this system is widely used in power generation, oil & gas, marine, mining, pulp & paper, steel manufacturing, and heavy industrial maintenance applications.
The XT770 GEO system delivers exceptional measurement accuracy, rugged IP66/IP67 durability, wireless connectivity, and multi-platform compatibility with Android, iOS, and the Easy-Laser XT12 display unit. It is specifically designed to minimize machine vibration, reduce bearing wear, improve energy efficiency, and extend equipment lifespan.
Why Choose the Easy-Laser XT770 GEO?
Complete Alignment and Geometry Measurement in One System
Unlike standard shaft alignment tools, the XT770 GEO integrates both rotating machinery alignment and geometric measurement functionality into a single portable platform.
Core Advantages
- High-accuracy laser shaft alignment
- Geometric measurements for machine foundations
- Simultaneous horizontal and vertical adjustment
- Wireless measurement units
- Real-time live adjustment display
- Automated PDF and Excel reporting
- IP66/IP67 rugged industrial protection
- Compatible with smartphones and tablets
- Long battery operating time
- Supports complex machine trains
Main Applications of Easy-Laser XT770 GEO
Rotating Machinery Alignment
The system is ideal for aligning:
- Pumps
- Compressors
- Turbines
- Electric motors
- Gearboxes
- Fans and blowers
- Marine propulsion systems
- Generators
- Cooling tower drives
- Paper machine rolls
Geometric Measurement Applications
Foundation and Surface Inspection
The XT770 GEO also performs:
- Flatness measurement
- Straightness checking
- Base twist analysis
- Parallelism inspection
- Bore centerline measurement
- Machine frame verification
- Dynamic movement monitoring
Key Features
1. Advanced Dot Laser Technology
The XT770 GEO utilizes precision dot laser technology for highly accurate and repeatable measurements across long distances.
Benefits
- Superior measurement stability
- High repeatability
- Improved long-distance performance
- Accurate live adjustments
2. 360° Live Adjustment Function
The integrated 360 Live adjustment mode allows technicians to adjust machines horizontally and vertically simultaneously in real time.
Advantages
- Faster alignment process
- Reduced downtime
- Improved alignment precision
- Easier machine corrections
3. Rugged Industrial Construction
The system is engineered for harsh industrial environments.
Protection Features
- IP66 waterproof protection
- IP67 dustproof rating
- Shock-resistant housing
- Heavy-duty anodized aluminum body
4. Wireless Connectivity
Built-in Bluetooth wireless communication simplifies field operation and eliminates excessive cables.
Connectivity Options
- Android devices
- iOS devices
- Easy-Laser XT12 display unit
- USB storage export
5. Automatic Reporting System
The XT770 GEO automatically generates professional documentation.
Export Formats
- PDF reports
- Excel reports
- USB export
- Cloud sharing support
Geometric Measurement Programs
Straightness Measurement
Used for:
- Long shafts
- Rails
- Rolls
- Bearing journals
- Machine beds
Flatness Measurement
Checks machine foundations and mounting surfaces.
Twist Measurement
Detects frame distortion and structural twisting.
EasyTrend Monitoring
Tracks machine movement over time for predictive maintenance.
Specifications
| Specification Category | Details |
|---|---|
| Product Name | Easy-Laser XT770 Shaft+GEO |
| Product Type | Laser Shaft Alignment & Geometric Measurement System |
| Manufacturer | Easy-Laser |
| Primary Application | Rotating Machinery Alignment |
| Alignment Capability | Horizontal, Vertical, Machine Train |
| Geometric Functions | Flatness, Straightness, Twist, Parallelism |
| Laser Technology | Dot Laser |
| Laser Class | Class 2 |
| Laser Output Power | < 1 mW |
| Laser Wavelength | 630–680 nm |
| Measurement Accuracy | ±1 µm ±1% |
| Measuring Distance | Up to 20 m (66 ft) |
| Communication | Bluetooth Wireless |
| Inclinometer Resolution | 0.1° |
| Environmental Protection | IP66/IP67 |
| Housing Material | Anodized Aluminum + PC/ABS + TPE |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 50°C |
| Battery Type | Heavy Duty Rechargeable Li-Ion |
| Measuring Unit Runtime | Up to 24 Hours |
| Display Compatibility | XT12 Display, Android, iOS |
| Data Export | PDF, Excel, USB |
| Camera Support | 13 MP Camera (XT12) |
| Optional IR Camera | Yes |
| Display Size | 8-inch Capacitive Touchscreen |
| Wireless Operation | Yes |
| Real-Time Adjustment | Yes |
| Soft Foot Check | Yes |
| Bearing Play Check | Yes |
| Thermal Growth Compensation | Yes |
| Tolerance Check | Yes |
| QR/Barcode Reading | Yes |
| Automatic Reporting | Yes |
| Machine Train Support | Yes |
| Cardan Shaft Alignment | Optional |
| Dynamic Machine Monitoring | Optional |
| Bore Centerline Measurement | Optional |
| Foundation Flatness Measurement | Yes |
| Straightness Measurement | Yes |
| Twist Measurement | Yes |
| Multi-Point Measurement | Yes |
| Continuous Sweep Measurement | Yes |
| Uncoupled Sweep | Yes |
| EasyTurn Function | Yes |
| Carrying Case | Included |
| USB Documentation | Included |
| Charger Input | 100–240 V AC |

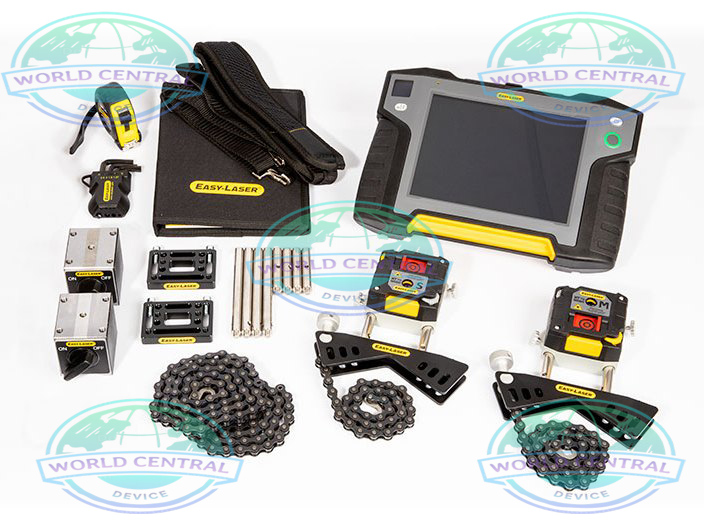

Components Included in the XT770 GEO System
Package Contents
Measuring Equipment
- XT70-M Measuring Unit
- XT70-S Measuring Unit
- XT20 or XT22 Laser Transmitter
Mounting Accessories
- Multi-bracket
- Shaft brackets with chains
- Extension chains
- Offset brackets
- Magnet bases
Documentation and Storage

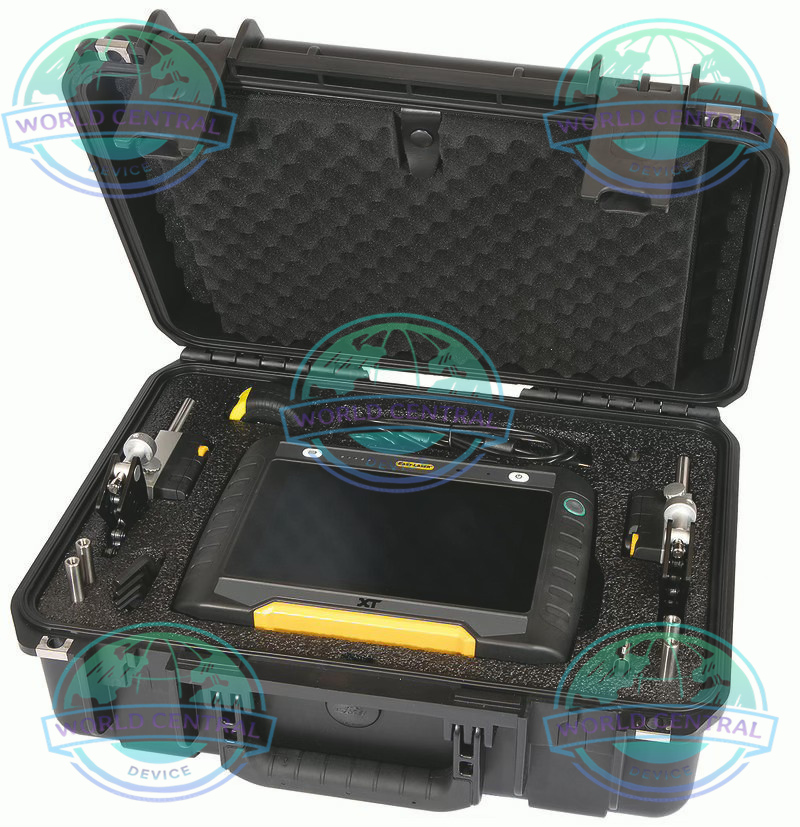

- Carrying case with wheels
- USB manuals
- Cleaning cloth
- Quick reference guide
