OmniScan X4 Phased Array Flaw Detector

Description

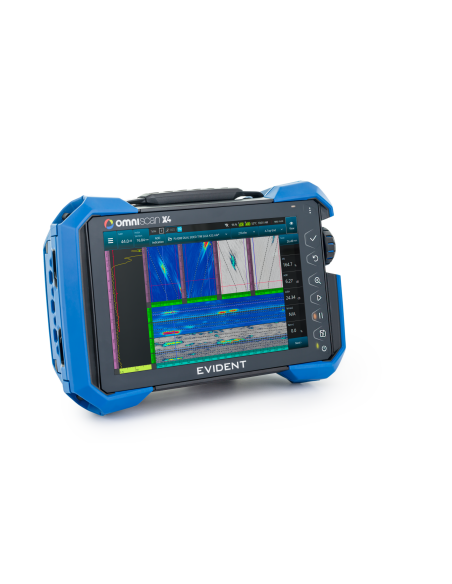

OmniScan X4 Phased Array Flaw Detector

The OmniScan X4 Phased Array Flaw Detector is a cutting-edge phased array ultrasonic testing (PAUT) instrument developed for high-precision non-destructive testing (NDT) inspections across demanding industrial environments. Designed to deliver faster acquisition speed, superior imaging quality, and enhanced workflow efficiency, the OmniScan X4 combines advanced phased array technology, Total Focusing Method (TFM), Full Matrix Capture (FMC), and conventional ultrasonic testing into a rugged portable inspection platform.

Built for inspectors who require high-performance ultrasonic imaging and reliable field operation, the OmniScan X4 is ideal for weld inspection, corrosion analysis, aerospace testing, pipeline evaluation, manufacturing quality assurance, and critical infrastructure inspection.

Its modern software architecture, high-resolution touchscreen interface, and advanced data analysis capabilities help improve flaw characterization and inspection productivity in oil & gas, aerospace, power generation, marine, transportation, and heavy manufacturing industries.

Why Choose the OmniScan X4?

The OmniScan X4 is engineered to provide advanced ultrasonic imaging performance while simplifying inspection workflows for professional NDT technicians.

Key Advantages

Advanced Phased Array Ultrasonic Technology

Provides highly accurate flaw detection and superior imaging performance.

Total Focusing Method (TFM)

Enhances defect characterization through high-resolution ultrasonic imaging.

Full Matrix Capture (FMC)

Captures complete ultrasonic data sets for advanced post-processing and analysis.

High-Speed Data Processing

Improves inspection productivity with faster acquisition and imaging performance.

Rugged Portable Design

Built for reliable operation in harsh industrial environments.

Main Applications

Weld Inspection

Ideal for:

• Pipeline weld inspection
• Pressure vessel testing
• Offshore structural weld evaluation
• Nuclear weld inspections
• Fabrication quality control

Corrosion Mapping

Suitable for:

• Pipeline corrosion monitoring
• Storage tank inspection
• Remaining wall thickness analysis
• Corrosion damage assessment

3x Faster TFM Acquisition Rate

The enhanced processing power of the OmniScan X4 series allows users to acquire clear TFM imaging at up to three times faster acquisition rates than the previous model (X3 64). Take advantage of the OmniScan X4 64:128PR unit’s faster speed and 128-element capacity to conduct TFM inspections with increased focusing capabilities.

Proven to Perform, Trusted to Deliver

Each OmniScan X4 unit is a complete multitechnology inspection toolbox, enabling you to exploit multiple ultrasonic testing techniques. Leverage its detection and measurement capabilities to accurately identify and evaluate the severity of damage before it becomes critical, protecting welds, components, and assets most susceptible to cracking or corrosion.

Assess with Certainty Using PCI

Eliminate doubt through phase coherence imaging’s capacity to detect and accentuate historically difficult-to-detect flaws, including hook cracks and stress corrosion cracking (SCC). Use PCI to clearly distinguish individual flaws in colonies of fine cracks and characterize them with certainty.

Gain Instant Insights and Eliminate Inefficiency
Twice the Confidence with Twin TFM and PCI

Exploit the individual attributes of PCI and TFM to thoroughly investigate the volume of welds from both sides simultaneously. Use two probes to scan the weld in one pass, displaying TFM and PCI results to compare, measure, and confirm your characterization of indications with efficiency and precision.

Engineered for Speed and Simplicity

Performing phased array, TOFD, TFM, and PCI is straightforward and intuitive on the OmniScan X4 series. Inspectors of any experience level can exploit these techniques with increased efficiency and more confidence utilizing the simple step-by-step scan plan and application presets.

Aerospace Inspection

Used for:

• Composite structure testing
• Aircraft component inspection
• Bond integrity analysis
• Turbine blade inspection
• Critical aerospace structures

Manufacturing and Fabrication

Supports inspection of:

• Forgings
• Castings
• Heavy industrial components
• Structural steel fabrication
• Welded assemblies

Power Generation Industry

Applied in:

• Turbine maintenance
• Boiler inspections
• Nuclear facility testing
• Structural integrity programs

Key Features

Advanced PAUT Imaging Technology

The OmniScan X4 uses powerful phased array imaging for superior flaw detection and characterization.

Inspection Benefits

• Enhanced defect visibility
• Improved inspection accuracy
• Faster scanning performance
• High-resolution imaging

Integrated TFM Capability

The advanced TFM function provides detailed ultrasonic imaging for critical inspection applications.

TFM Advantages

• Better flaw sizing
• Improved defect characterization
• Increased inspection confidence
• Reduced false indications

Full Matrix Capture (FMC)

FMC technology enables advanced data collection for flexible post-analysis.

FMC Benefits

• Complete inspection data acquisition
• Advanced image reconstruction
• Enhanced analytical capabilities
• Greater inspection coverage

High-Resolution Touchscreen Display

The OmniScan X4 features a modern industrial touchscreen optimized for field operation.

Display Features

• Large high-brightness screen
• Multi-touch navigation
• Excellent outdoor visibility
• Intuitive user interface

Multi-Technology Inspection Platform

The system supports multiple inspection techniques within a single portable platform.

Supported Inspection Methods

• Phased Array Ultrasonic Testing (PAUT)
• Conventional UT
• TFM
• FMC
• TOFD

Specifications
