Description

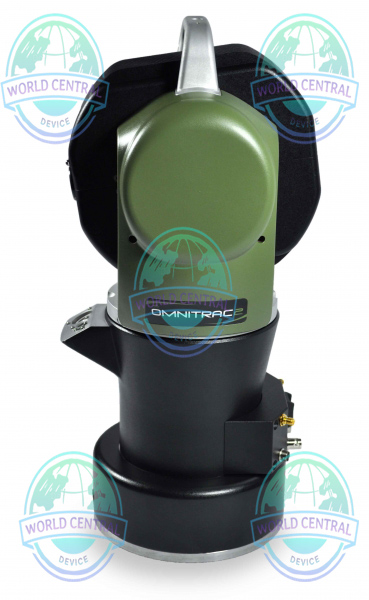

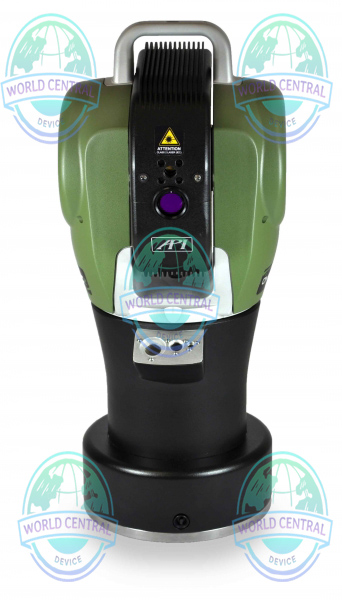

API Omnitrac 2 Industrial Laser Tracker

The API Omnitrac 2 Industrial Laser Tracker is a high-precision portable metrology system designed for large-scale dimensional inspection, industrial alignment, aerospace assembly, and precision manufacturing applications. Developed by API Metrology, the Omnitrac 2 combines advanced laser tracking technology with real-time 3D measurement capabilities for accurate industrial metrology workflows.

Built for demanding production environments, the system provides ultra-precise coordinate measurements, dynamic tracking performance, and flexible portability for large-volume inspection tasks across multiple industries.

What is the API Omnitrac 2 Industrial Laser Tracker?

The API Omnitrac 2 is a laser-based coordinate measurement system capable of tracking reflective targets and determining their exact 3D position in space with micron-level accuracy.

The system is commonly used for:

• Large-scale dimensional inspection
• Aerospace alignment
• Tooling verification
• Assembly guidance
• Robotic calibration
• Industrial alignment
• Reverse engineering
• Quality control inspection

The Omnitrac 2 enables manufacturers to measure large components faster and more accurately than traditional manual metrology methods.

Key Features of the API Omnitrac 2

High-Precision Laser Tracking Technology

The system continuously tracks a retroreflector target to calculate highly accurate spatial coordinates.

Main Advantages

• Real-time coordinate measurement
• Large-volume inspection capability
• High repeatability
• Dynamic tracking accuracy

Features:

API Omnitrac 2 Wireless Laser Tracker and Accessories advances the portability and convenience of laser trackers. Omnitrac2 includes:

Completely wireless operation (Integrated controller, weather station, tilt sensor, battery, WiFi)
Battery operation (3-6 hours) with internal, rechargeable cells (non-removable by user)
High accuracy ADM able to do dynamic measurement
Autolock (Camera Assisted Automated Target Acquisition)
Onboard level sensor

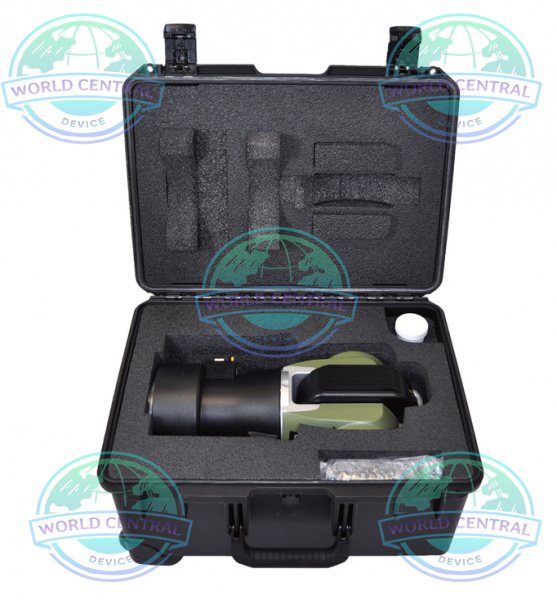

Highly portable (only 10.8 Kg with a single transport case)
Mounting versatility: mount sideways, upside down, underneath, or directly on your part
Compatible with the current API quick-link instrument stands and accessories

System Performance:

Azimuth Range: ± 320º (640º end to end)
Elevation Range: + 79º / -59º
Angular Resolution: ± 0.018 arc seconds
System Angular Accuracy: 3.5 μm/m*
System Resolution: 0.02 arc seconds
Maximum Lateral Target Speed: 180º / sec
Maximum Acceleration: > 2 g
Maximum Battery Life: 6 hours (internal battery, Capable of hot-switching with External battery)
Internal Level Accuracy: ±2 arc-second
Internal Level Range: ±2 degrees

Portable Industrial Metrology Platform

The Omnitrac 2 is engineered for portability and field deployment.

Portability Benefits

• Easy transport between production areas
• Fast setup procedures
• Flexible measurement positioning
• Suitable for factory and field environments

Large Measurement Volume

The system supports long-range measurement applications across large industrial assemblies.

Typical Applications

• Aircraft structures
• Automotive body inspection
• Heavy machinery alignment
• Energy sector equipment verification

Real-Time Dynamic Tracking

The tracker continuously follows moving targets during measurement operations.

Tracking Benefits

• Faster inspection workflows
• Reduced measurement downtime
• Improved assembly alignment
• Enhanced manufacturing precision

Applications of API Omnitrac 2

Aerospace Manufacturing

The Omnitrac 2 is widely used in aerospace assembly and alignment operations.

Aerospace Uses

• Aircraft fuselage alignment
• Wing assembly verification
• Jig and tooling calibration
• Engine component positioning

Automotive Production

Manufacturers use the system for dimensional verification and robotic calibration.

Automotive Applications

• Body-in-white inspection
• Fixture alignment
• Robotic path validation
• Tool setup verification

Heavy Industry & Energy

Large-scale industrial sectors benefit from precise alignment measurements.

Industrial Uses

• Turbine alignment
• Generator positioning
• Industrial machinery inspection
• Plant equipment installation

Quality Control & Reverse Engineering

The tracker supports advanced inspection and digital manufacturing workflows.

How the API Omnitrac 2 Works

The system emits a laser beam toward a retroreflective target called an SMR (Spherically Mounted Retroreflector). As the target moves, the laser tracker continuously follows it and calculates its precise position in 3D space.

The measurement process enables:

• Real-time coordinate acquisition
• Dynamic spatial analysis
• Large-component inspection
• High-accuracy alignment verification

The collected data can then be analyzed using metrology software for inspection reporting and dimensional validation.

Advantages of the API Omnitrac 2

Exceptional Measurement Accuracy

The system delivers micron-level precision for demanding industrial applications.

Large-Scale Inspection Capability

Users can measure large assemblies without moving the part.

Faster Manufacturing Workflows

Real-time tracking reduces inspection and setup time.

Improved Production Quality

Accurate dimensional verification minimizes assembly errors.

Technical Specifications

Software and Digital Integration

API Metrology Software

The Omnitrac 2 integrates with advanced metrology software for analysis and reporting.

Software Features

• CAD comparison
• Dimensional reporting
• Real-time visualization
• Alignment analysis
• Inspection automation
